DSLR/Mirrorless Field Setup Guide

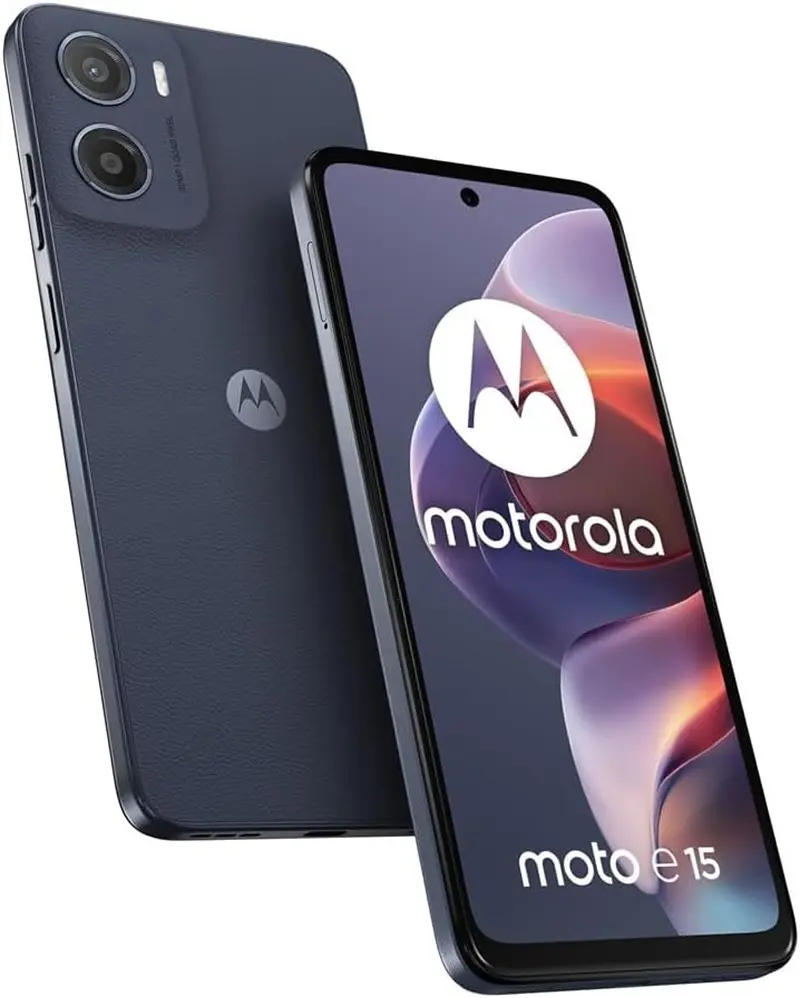

Motorola Moto E15 Dual-SIM 64GB ROM + 2GB RAM

Any Android phone will work as a timelapse controller, but this model has been specifically tested in the field. It is a bit slow, which means very low power consumption and exceptionally long battery life — making it an excellent choice for solar panel powered deployments.

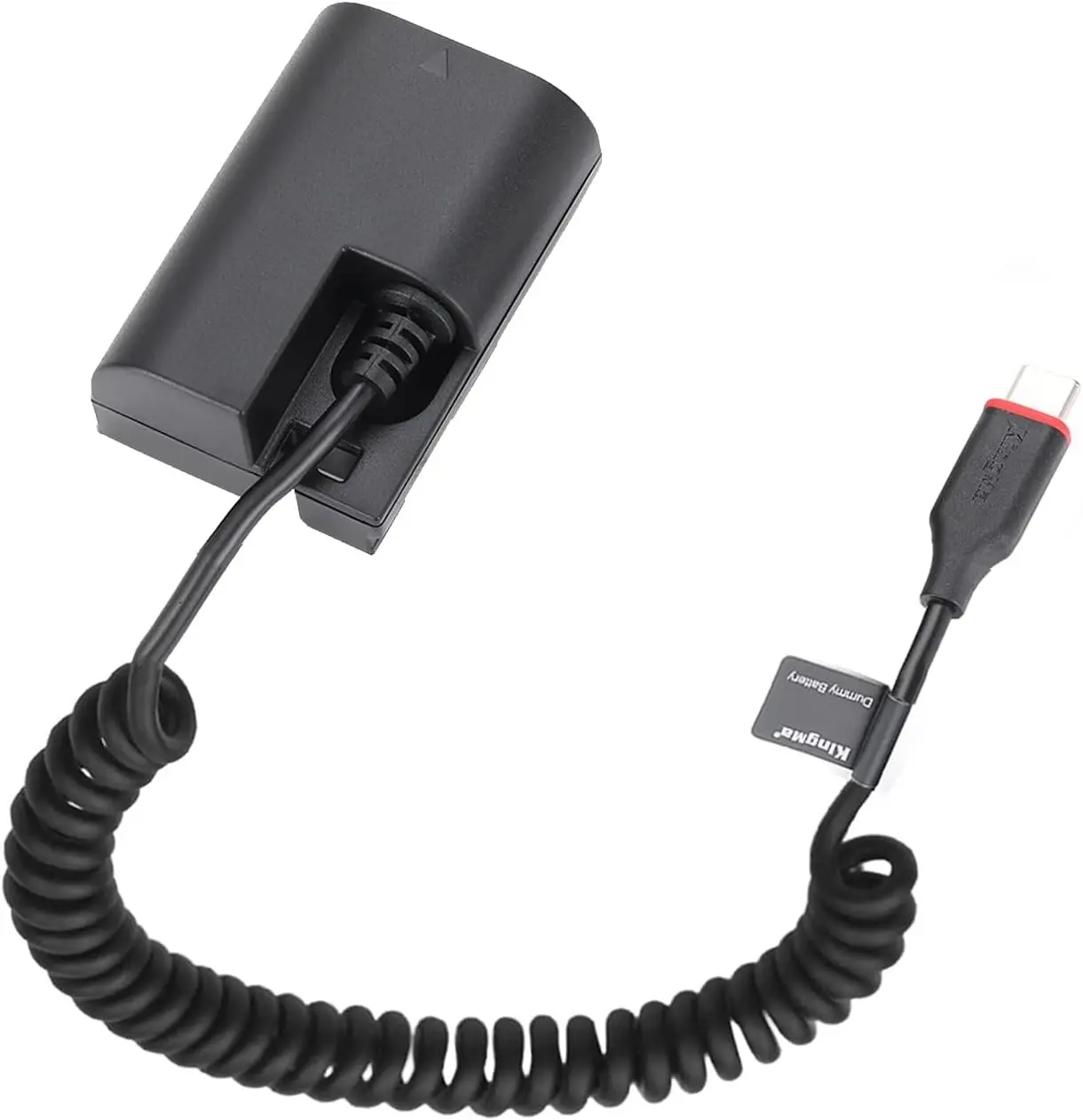

Dummy Battery (DC Coupler)

A dummy battery replaces your camera's standard battery and provides continuous external power, eliminating the need to swap batteries during long-term timelapse projects. Essential for unattended deployments where the camera must run 24/7.

Connect the dummy battery to a power bank or AC charger with PD (Power Delivery) fast charging interface. PD ensures stable voltage output and enough wattage to keep the camera running reliably under load.

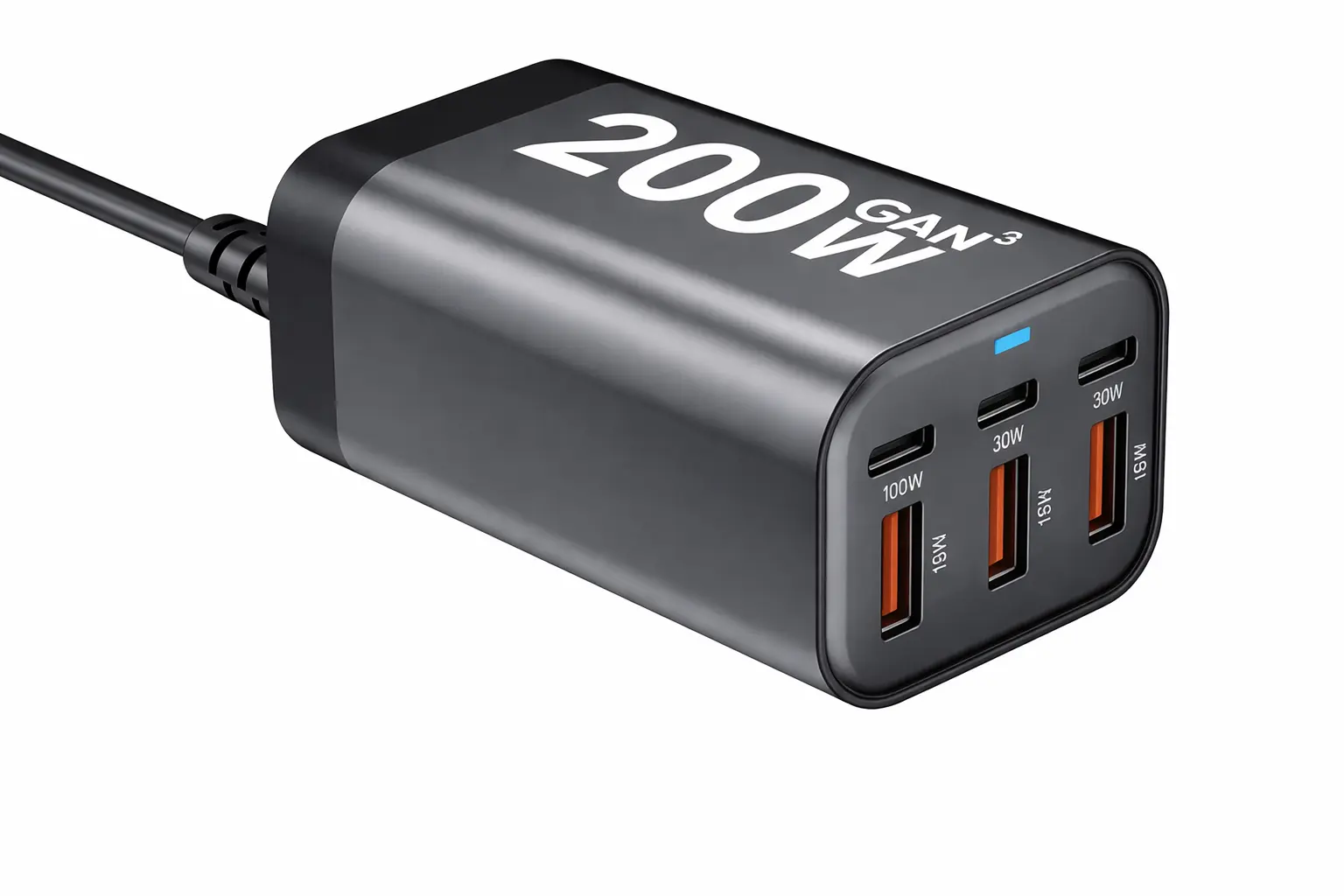

USB-C Charger — Multi-Port PD with Independent Voltage Negotiation

Use a USB-C charger with at least 2 PD ports that support independent voltage negotiation — each port must be able to negotiate the correct voltage separately, so the phone and the dummy battery each receive the power they need without interfering with each other.

Choose a model with a detachable power cable rather than a built-in plug. This way the cable can pass through a waterproof cable gland in the weatherproof case, keeping the charger inside the enclosure while the mains connection stays outside.

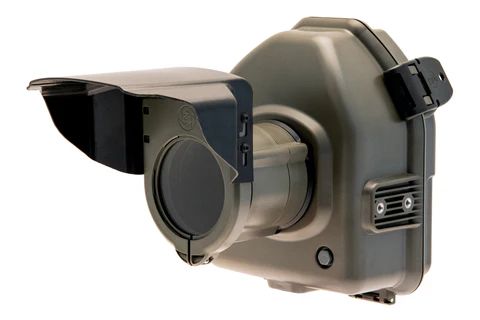

Camtraptions Camera Housing

Strong moulded plastic enclosure with weatherproof seals that completely protects your camera from rain and humidity. Fits any compact, mirrorless or DSLR camera up to the size of a Canon 1D X or Nikon D5.

• Stacking Tube System — easily adapt to lenses of different lengths without sacrificing weatherproofing.
• Quick-access back door — secured with two quick-release catches, lockable with cable ties or a padlock.
• Slide-out base plate — access batteries, memory cards, and camera settings without removing the camera from the housing.
• Dual tripod sockets — mount in landscape or portrait orientation; dual screws prevent the housing from twisting.
• Adjustable peak — shades the lens from sun and rain, adjustable to stay out of frame.
• Glass window — high-quality optical glass protects the lens without compromising image quality. Heated windows also available.

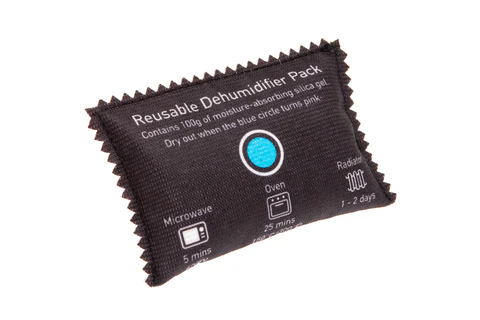

Reusable Silica Moisture-Absorbing Pack

Place one or more 100g desiccant packs inside your camera housing to protect equipment from humidity and condensation. A color-changing indicator turns pink when the pack is saturated and needs recharging.

Fully reusable — recharge in the microwave (5 min), oven (25 min at 150°C), or on a radiator (1–2 days). Use multiple packs for extended protection in high-humidity environments.
